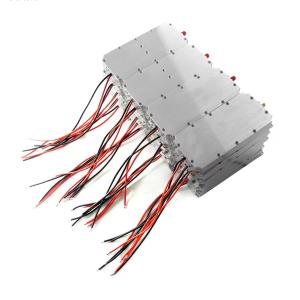

| Product Description RX-5840 is a wireless anti drone module dedicated to 5725~5850 MHz s. This module has the advantages of high average output power (40W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands. Regular type with source,if you want without source type also can offer(input 0-10dBm) |
| Main performance index |
| Index | Numerical | Unit | Note | ||
| Min | Typical | Max | |||
| Frequency | 5700 | 5900 | MHz | ||
| Output power | 46.5 | 47 | 47.5 | dBm | |
| Band flatness | 1 | dB | |||
| Work current | 3.8 | A | |||
| Work voltage | 28 | 32 | V | ||
| Work efficiency | 45 | % | |||
| Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | ||
| Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | ||
| Weight | 0.5kg | ||||
| Dimension | 205*112*25 mm | ||||
